Measurement principle of Birefringence Measurement System PA/WPA series.

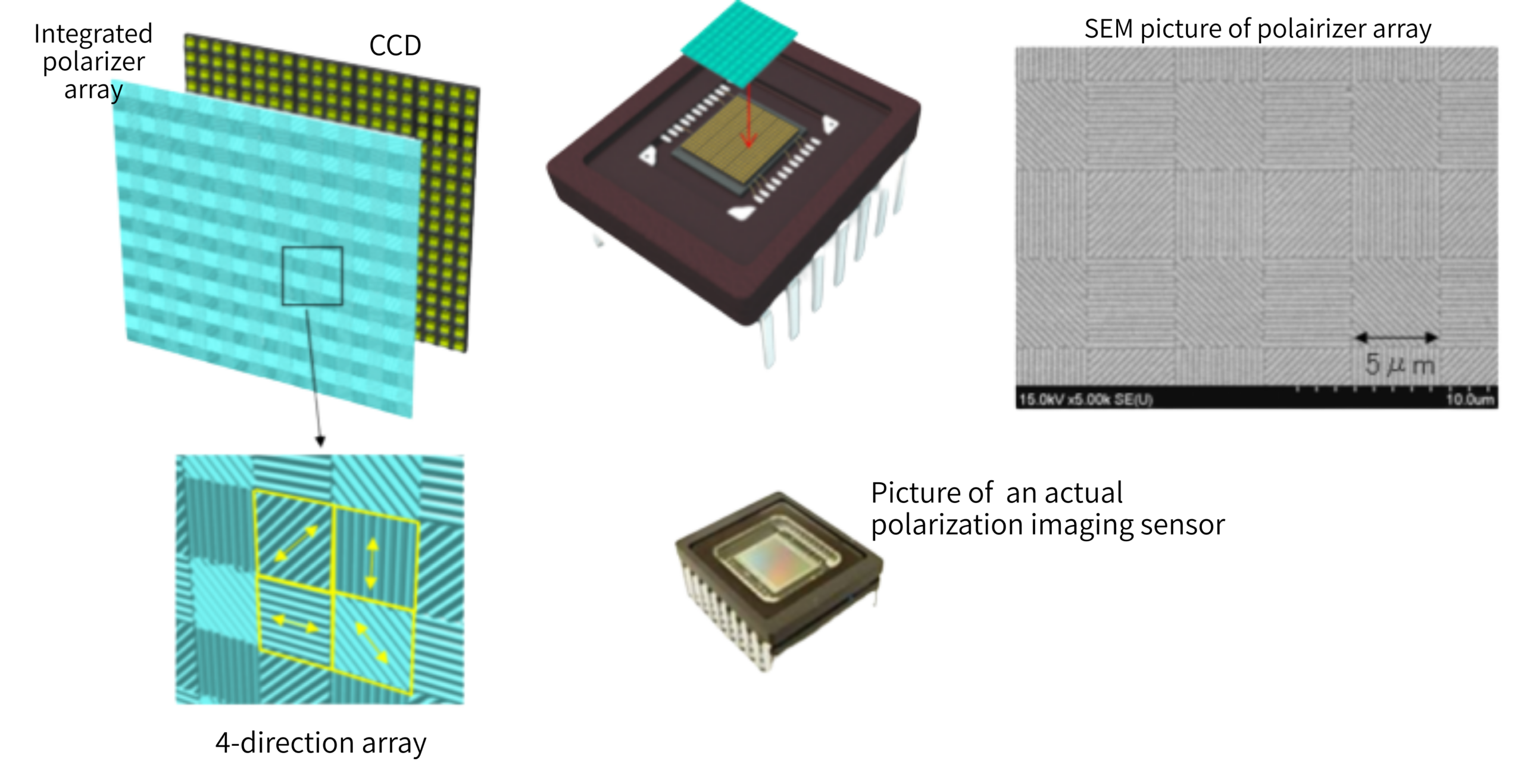

Basic structure of Polarization Imaging Sensor

Microscopic size polarization filters are integrated and placed in front of a CCD image sensor

Principle of Polarization Imaging Sensor Technology and Measurement

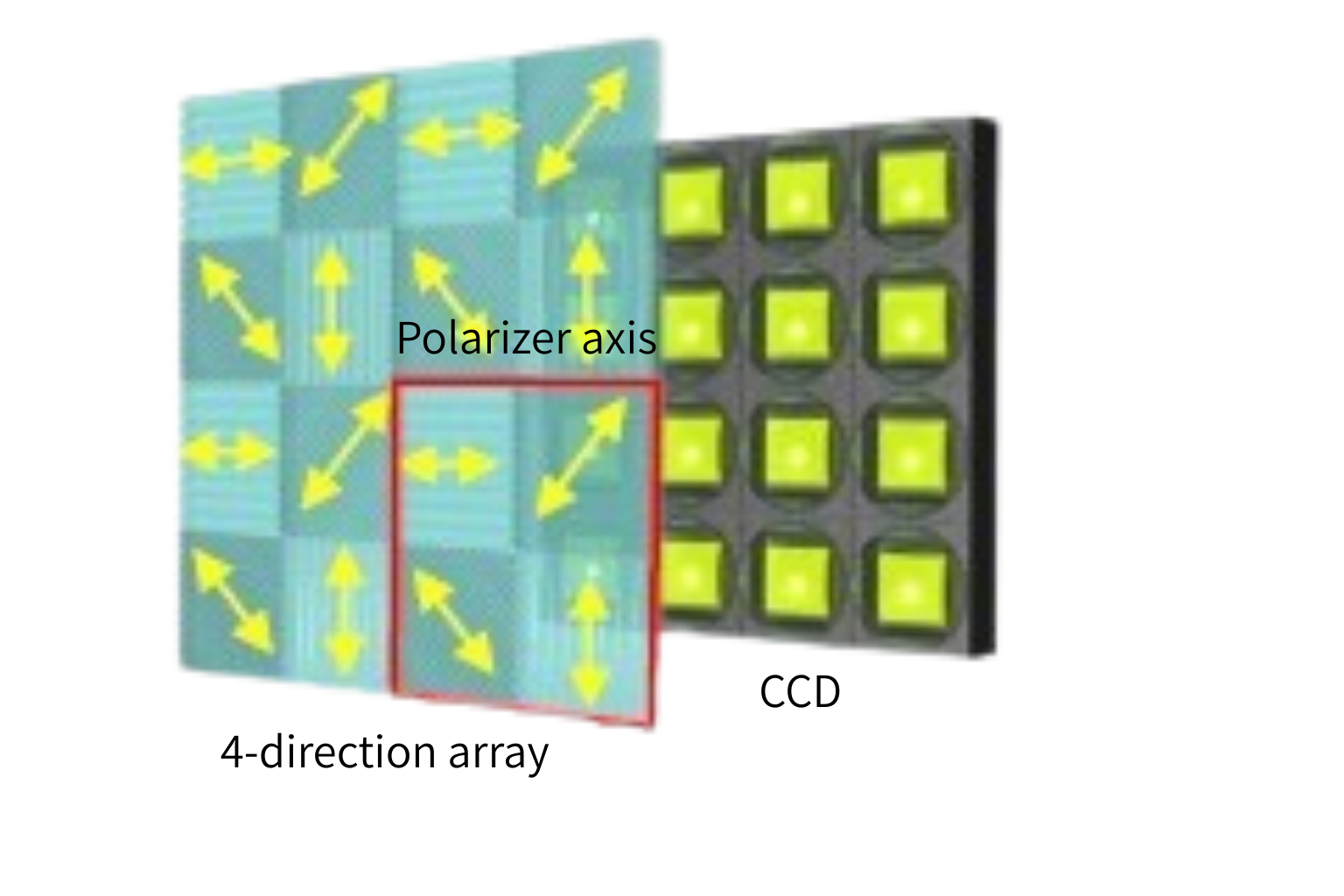

Computation of polarization information from intensity at 4 neighbor pixels

[Relation between input polarization and intensity pattern]

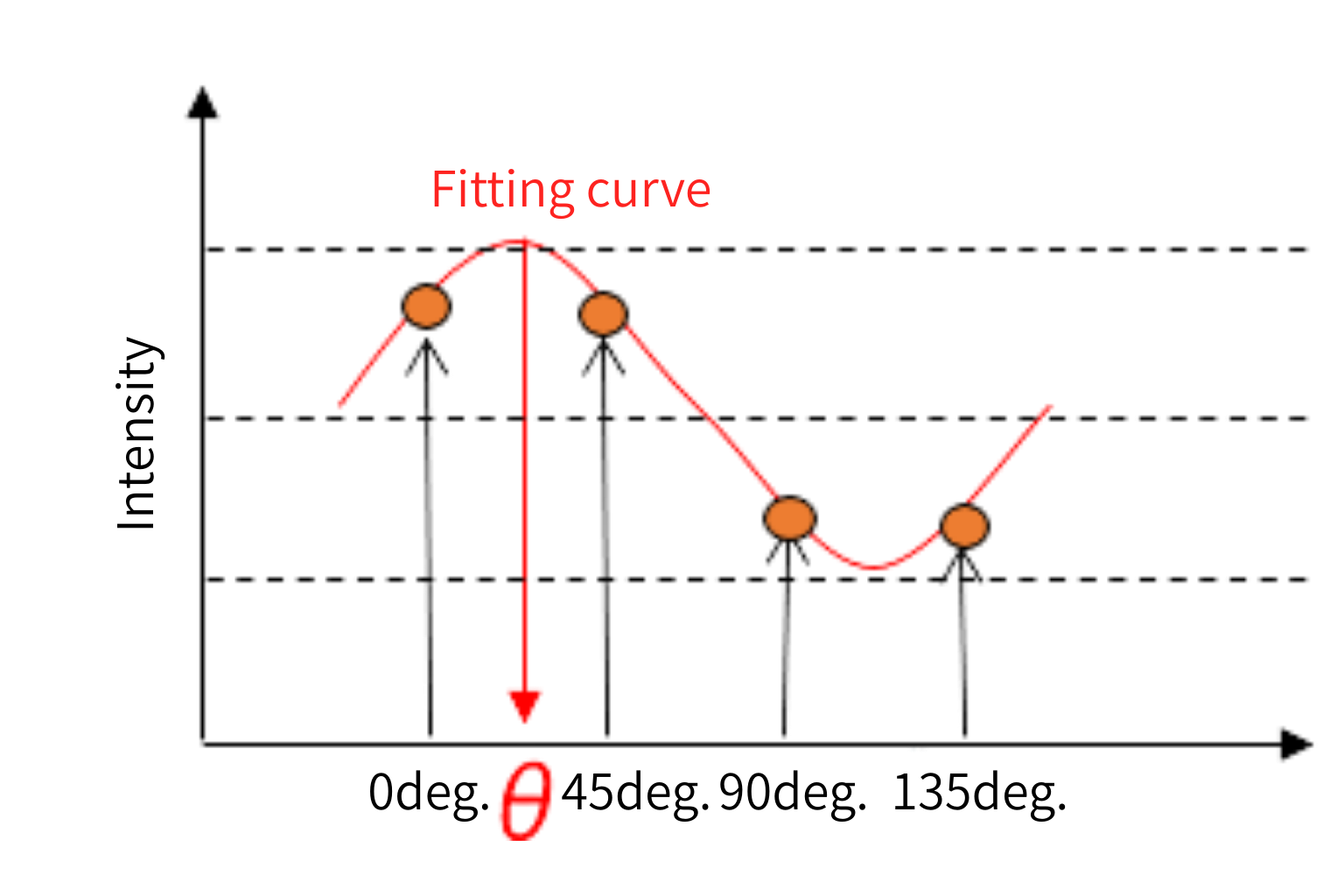

[Computation principle ]
Intensity is supposed to describe a sinusoid.
By knowing only 4 points of the curve, it is possible to recover the whole set of information for any input polarization.


Polarizer angle

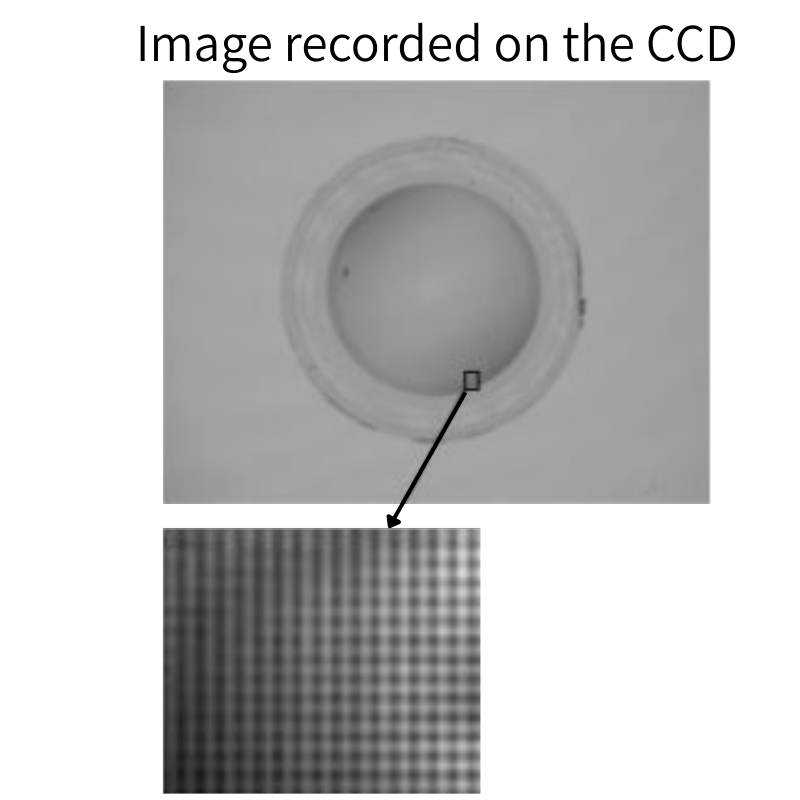

Intensity pattern is linked to the state of polarization at each location


Birefringence data (phase shift and axis orientation) is present at each point as quantitative data.

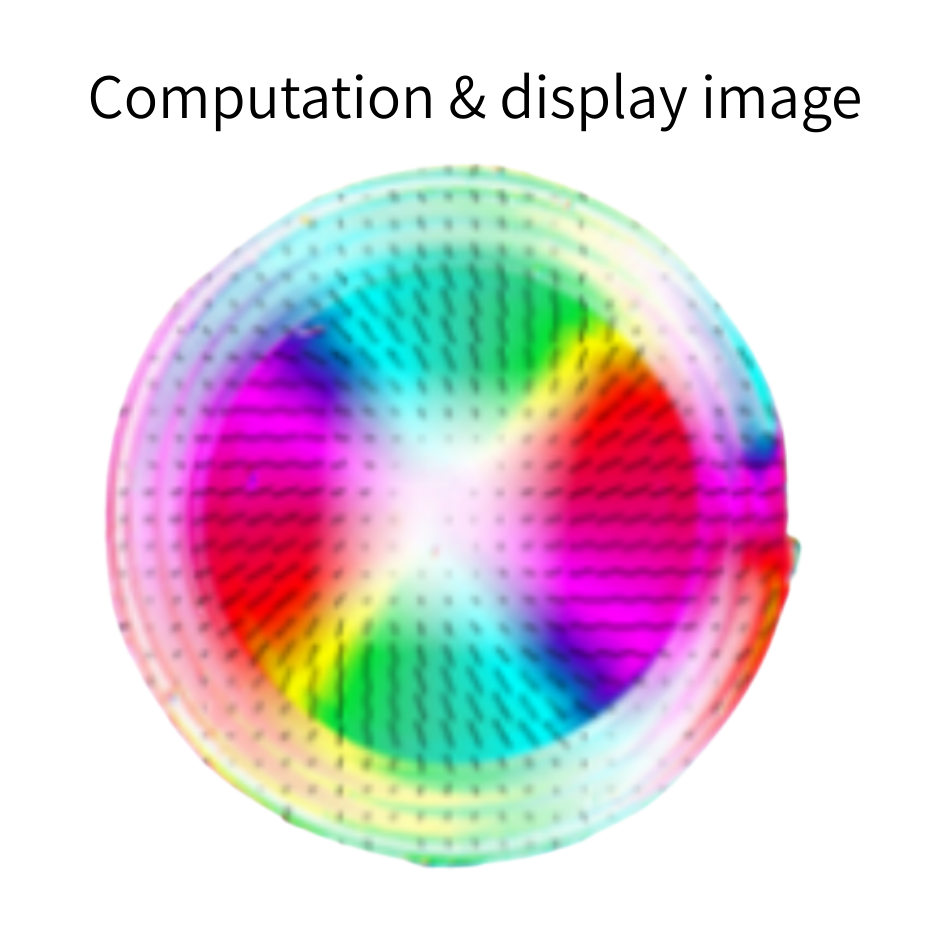

Measurement example: lens

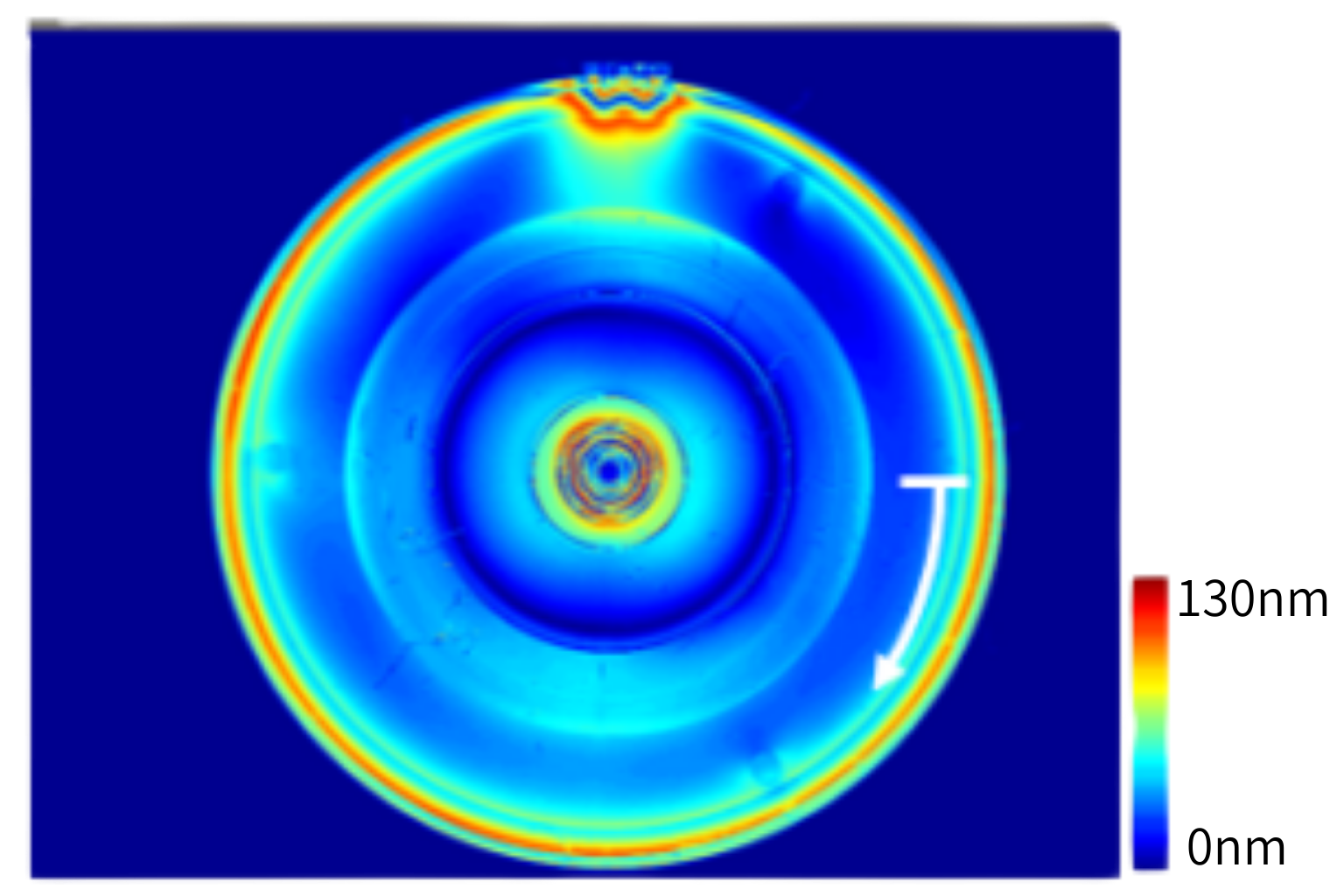

Phase shift distribution

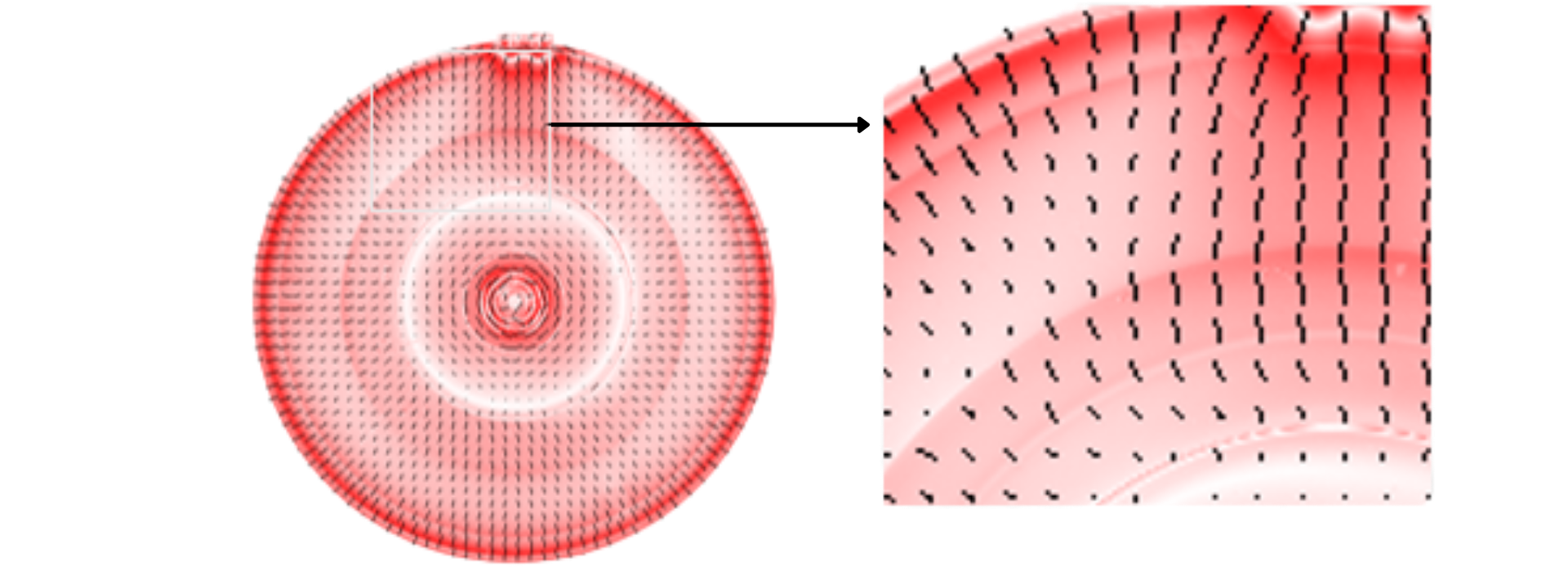

Axis orientation

・Detailed quantitative evaluation and comparison is possible between multiple sets of data.
・The slightest differences between two sets of data are easy to spot on displayed images.


Phase along lens circumference
