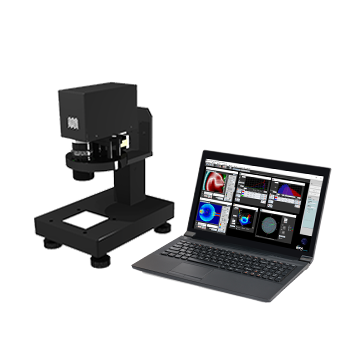

2D Birefringence Measurement System

WPA Series WPA-MT

A series that expands the measurement range of phase difference to 0 ～ 3,500 nm by measuring the distribution of birefringence/phase difference over 3 wavelengths.

Separable light source so the measurement head can be incorporated inline into production line.

Specifications
	measurement
Output	Phase shift / retardation (nm), Axis orientation (°) Stress equivalent (Mpa) ※As part as "data processing" option
Range	0-3500nm (in the case pure quartz was measured)
Repeatability	σ<0.1nm
	Sensor part
Resolution	384 × 288 (≒0.11M) pixels
Operating wavelength	523nm, 543nm, 575nm
	Hardware
Dimensions (W x D x H)	160 × 215 × 300mm with base station
Objective lens dimensions	Approx. 33 × 44mm（standard lens） Approx. 4.1 × 5.5mm ～ Approx. 11.5 × 15.3mm (zoom lens version) ※Lens type (standard or zoom) could not be changed after purchase
Weight	Approx. 4.5kg
	Miscellaneous
Interface	GigE (camera signal)
Power supply	AC100～240V（50/60Hz） / ～5.0A
Software	WPA-View
Accessories	Notebook PC, Standard lens, User manual, Selected lens (standard or zoom)
	Option
Zoom lens	Subject to discussion
Data processing function	Yes
Field-Of-View (FOV) Correction	Yes
Lens analysis function	Yes
Lens Measurement Stage	Yes
Real-time analysis	Yes
Chromatic dispersion mode	Yes
High retardation measurement option	Subject to discussion
Remote control	Supplied by default
