PRODUCT DETAILS

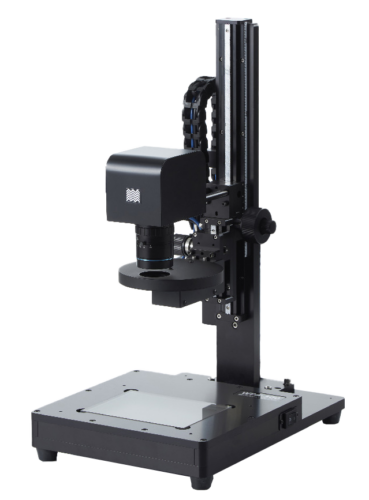

2D Birefringence Measurement System

WPA-300Series

Large birefringence measurement made possible by multiple – wavelength evaluation

Data measured at three different wavelengths

Data merged into one high-retardation data distribution

The WPA-300 series provides sharper measurement by increasing the resolution of the polarization image sensor up to 5 times, while maintaining the large phase difference measurement performance of the WPA-200 series. It is possible to convert small, minute changes in phase difference into clearer data.

WPA-300 Specifications
  • Measurement
Output
  • Phase shift / retardation (nm), Axis orientation (°)
    Stress equivalent (Mpa) ※As part as "data processing" option
Range
  • 0-3500nm
    (in the case pure quartz was measured)
Repeatability
  • Retardation : σ<0.1 nm
    Axis orientation : σ<0.1 degree (Retardation>10 nm)
  • Sensor part
Resolution
  • 848 × 680 (≈57M) pixels
Operating wavelength
  • 523nm, 543nm, 575nm
  • Hardware
Dimensions
(W x D x H)
  • 270 × 380 × Max. 624mm
Field of View
  • About 36 × 45mm ～ About 100 × 133mm (standard lens)
    About 12 × 15mm ～ About 32 × 40mm (zoom lens) ※option
Weight
  • About 15kg
  • Miscellaneous
Interface
  • GigE (camera signal)
Power supply
  • AC100～240V (50/60Hz) / ～5.0A
Software
  • WPA-View
Accessories
  • Desktop PC, Standard lens, User manual
  • Option
Zoom lens
  • Yes
Data processing function
  • Yes
Field-Of-View (FOV) Correction function
  • Yes
Lens analysis function
  • Yes
Real-time analysis function
  • Yes
Remote control function
  • Yes
Chromatic dispersion mode
  • Yes
WPA High retardation
  • Subject to discussion
Lens Measurement Stage
  • Yes
Shading cover for PA/WPA
  • Yes
Photoelasticity measurement
  • Yes
WPA-300-L Specifications
  • measurement
Output
  • Phase shift / retardation (nm), Axis orientation (°)
    Stress equivalent (Mpa) ※As part as "data processing" option
Range
  • 0-3500nm
    (in the case pure quartz was measured)
Repeatability
  • Retardation : σ<0.1 nm
    Axis orientation : σ<0.1 degree (Retardation>10 nm)
  • Sensor part
Resolution
  • 848 × 680 (≈57M) pixels
Operating wavelength
  • 523nm, 543nm, 575nm
  • Hardware
Dimensions
(W x D x H)
  • 430 × 508 × Max.1135mm
Objective lens dimensions
  • About 36 × 45mm ～ About 255 × 320mm (standard lens)
    About 12 × 15mm ～ About 32 × 40mm (zoom lens) ※option
Weight
  • About 25kg
  • Miscellaneous
Interface
  • GigE (camera signal)
Power supply
  • AC100～240V (50/60Hz) / ～5.0A
Software
  • WPA-View
Items included
  • Desktop PC, Standard lens, User manual
  • Option
Zoom lens
  • Yes
Data processing function
  • Yes
Field-Of-View (FOV) Correction function
  • Yes
Lens analysis function
  • Yes
Real-time analysis function
  • Yes
Remote control function
  • Yes
Chromatic dispersion mode
  • Yes
WPA High retardation
  • Subject to discussion
Lens Measurement Stage
  • Subject to discussion
Shading cover for PA/WPA
  • Yes
Photoelasticity measurement
  • Yes
