PRODUCT DETAILS

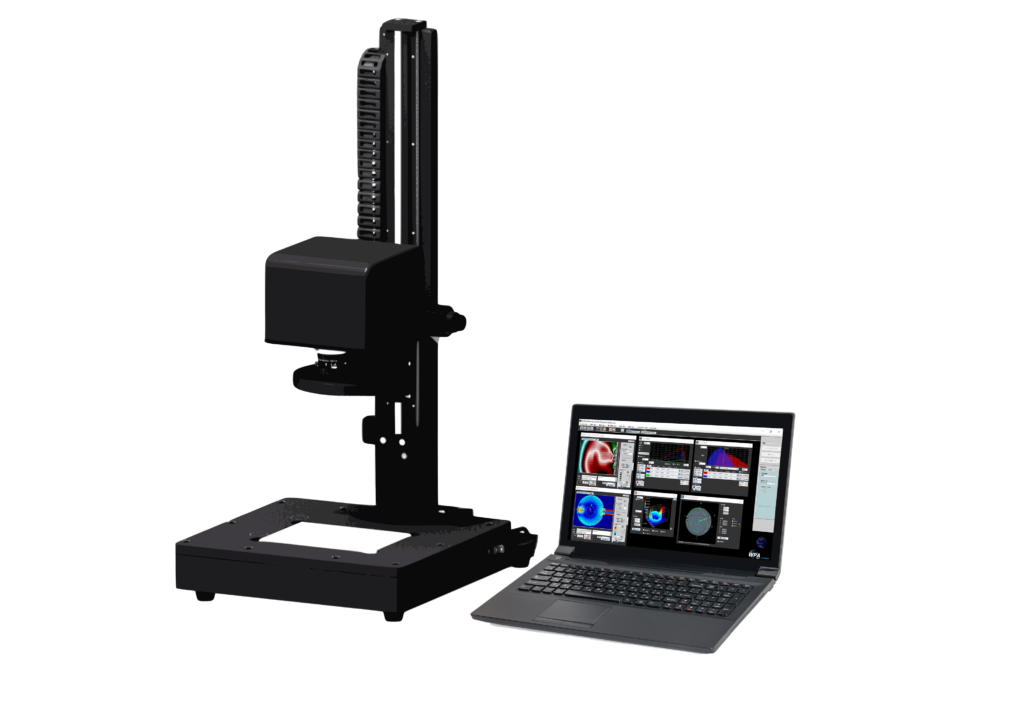

2D Birefringence Measurement System

WPA-200Series

WPA series that expands the measurement range of phase difference from 0 to 3,500 nm by measuring the distribution of birefringence/phase difference over three waves.
Suitable for measurement of films and transparent resin products.
Ranging from microscopic to macroscopic (～50cm), the field of view adapts to any measurement situation, and there is a system for each size.

Measurement Example

Film

Meter Panel

WPA-200 Specifications
  • Measurement
Output
  • Phase shift / retardation (nm), Axis orientation (°)
    Stress equivalent (Mpa) ※As part as "data processing" option
Range
  • 0-3500nm
    (in the case pure quartz was measured)
Repeatability
  • Retardation : σ<0.1 nm
    Axis orientation : σ<0.1 degree (Retardation>10 nm)
  • Sensor part
Resolution
  • 384 × 288 (≒0.11M) pixels
Operating wavelength
  • 523nm, 543nm, 575nm
  • Hardware
Dimensions
(W x D x H)
  • 270 × 337 × Max. 631mm
Field of View
  • About 27 × 36mm ～ About 100 × 133mm (standard lens)
    About 3.0 × 4.0mm ～ About 14.2 × 19.0mm (zoom lens) ※option
Weight
  • About 13kg
  • Miscellaneous
Interface
  • GigE (camera signal)
Power supply
  • AC100～240V (50/60Hz) / ～5.0A
Software
  • WPA-View
Accessories
  • Desktop PC, Standard lens, User manual
  • Option
Zoom lens
  • Yes
Data processing function
  • Yes
Field-Of-View (FOV) Correction function
  • Yes
Lens analysis function
  • Yes
Real-time analysis function
  • Yes
Remote control function
  • Yes
Chromatic dispersion mode
  • Yes
WPA High retardation
  • Yes
Lens Measurement Stage
  • Yes
Shading cover for PA/WPA
  • Yes
Photoelasticity measurement
  • Yes
WPA-200-L Specifications
  • measurement
Output
  • Phase shift / retardation (nm), Axis orientation (°)
    Stress equivalent (Mpa) ※As part as "data processing" option
Range
  • 0-3500nm
    (in the case pure quartz was measured)
Repeatability
  • Retardation : σ<0.1 nm
    Axis orientation : σ<0.1 degree (Retardation>10 nm)
  • Sensor part
Resolution
  • 384 × 288 (≒0.11M) pixels
Operating wavelength
  • 523nm, 543nm, 575nm
  • Hardware
Dimensions
(W x D x H)
  • 430 × 487 × Max. 977mm
Objective lens dimensions
  • Approx. 33 × 44mm ～ Approx. 240 × 320mm (standard lens)
    Approx. 3.0 × 4.0mm ～ Approx. 14.2 × 19.0mm (zoom lens) ※option
Weight
  • About 23kg
  • Miscellaneous
Interface
  • GigE (camera signal)
Power supply
  • AC100～240V (50/60Hz) / ～5.0A
Software
  • WPA-View
Items included
  • Desktop PC, Standard lens, User manual
  • Option
Zoom lens
  • Yes
Data processing function
  • Yes
Field-Of-View (FOV) Correction function
  • Yes
Lens analysis function
  • Yes
Real-time analysis function
  • Yes
Remote control function
  • Yes
Chromatic dispersion mode
  • Yes
WPA High retardation
  • Yes
Lens Measurement Stage
  • Subject to discussion
Shading cover for PA/WPA
  • Yes
Photoelasticity measurement
  • Yes
WPA-200-XL Specifications
  • measurement
Output
  • Phase shift / retardation (nm), Axis orientation (°)
    Stress equivalent (Mpa) ※As part as "data processing" option
Range
  • 0-3500nm
    (in the case pure quartz was measured)
Repeatability
  • Retardation : σ<0.1 nm
    Axis orientation : σ<0.1 degree (Retardation>10 nm)
  • Sensor part
Resolution
  • 384 × 288 (≒0.11M) pixels
Operating wavelength
  • 523nm, 543nm, 575nm
  • Hardware
Dimensions
(W x D x H)
  • 650 × 650 × Max. 1930mm
Objective lens dimensions
  • Approx. 218 × 290mm ～ Approx. 360× 480mm (standard lens)
    (Zoom lens option is not available for this model.)
Weight
  • About 47kg
  • Miscellaneous
Interface
  • GigE (camera signal)
Power supply
  • AC100～240V (50/60Hz) / ～5.0A
Software
  • WPA-View
Accessories
  • Desktop PC, Standard lens, User manual
  • Option
Zoom lens
  • No
Data processing function
  • Yes
Field-Of-View (FOV) Correction function
  • Yes
Lens analysis function
  • Yes
Real-time analysis function
  • Yes
Remote control function
  • Yes
Chromatic dispersion mode
  • Yes
WPA High retardation
  • Yes
Lens Measurement Stage
  • No
Shading cover for PA/WPA
  • No
Photoelasticity measurement
  • No
